Light Node Properties

INDEX PREVIOUS NEXT


The following tabs are available in the Light Node Properties dialog box:

Node name

Use the [Node name] tab to set the name of the Light node.

Node name

If the node is linked, the node name is displayed in the [Node name for light] text box. If it is not linked, then "Unknown" is displayed here. To change the node name, edit the name that is displayed. To specify a new name for a node that is not linked, delete "Unknown" and input the desired name. Conversely, to delete the node name, delete the name that is displayed in the text box. Please note that ASCII characters from "!" (0x21) to "~" (0x7e) can be used for node names. In addition, node names cannot contain spaces, nor can they contain kanji, hiragana or katakana characters.

Type

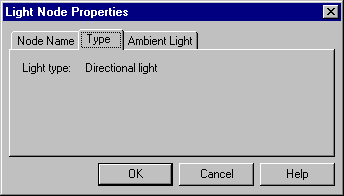

Use the [Type] tab to check the Light type settings.

Type

The Light type settings cannot be modified.

Ambient light

Use the [Ambient light] tab to set the ambient light settings.

Ambient light

Specify the values for the ambient light settings, (Red componet, Green Component, and Blue Component) using a floating decimal point.
